LDO Voltage Regulator uses Regenerative Amplifier
All materials and content contained on this page are the exclusive intellectual property of Andrew R. Morris and
may not be copied, reproduced, distributed or displayed without his express written permission.
If an integrated circuit low-dropout (LDO) voltage regulator that exactly meets your needs is not available, you can make your own discreet version with the simple high performing circuit.  This circuit employs what I call a regenerative amplifier, which uses positive feedback to creat a huge amount of gain from just two transistors.  Click for the remining Circuit Description & PDF of Schematic
More:  Voltage Regulators

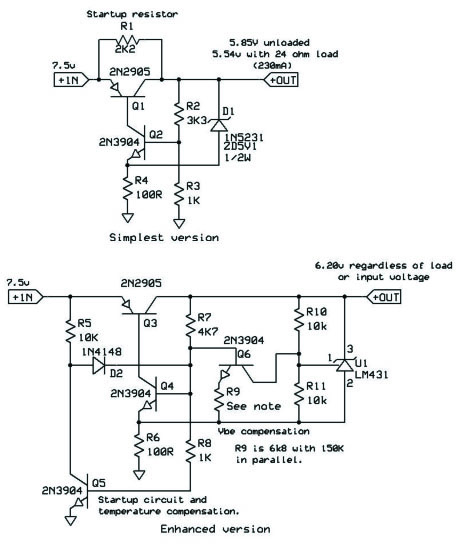

Click on Schematic to view PDF
