4 LINE TELEPHONE LINE STATUS INDICATOR


Many home businesses use multiple phone lines. This circuit gives you a visual indication when a line is in operation. The two AA battery cells should provide enough power for about one year of operation.

Click on Drawing Below to view PDF version of Schematic

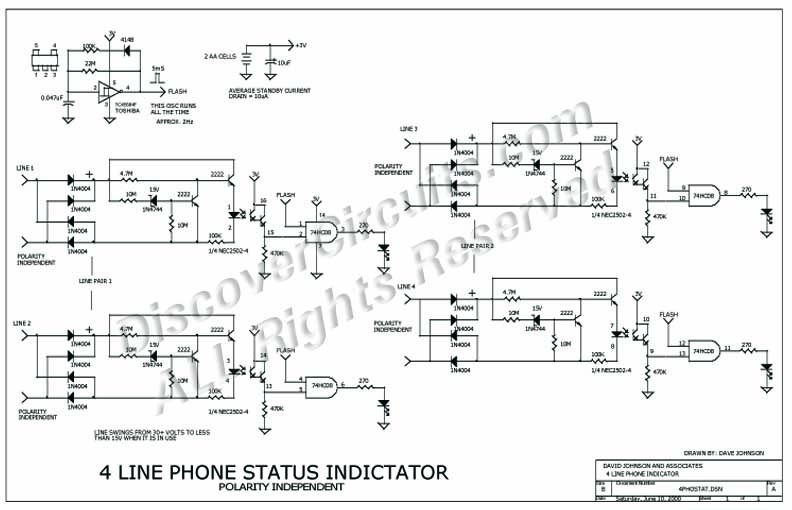

Circuit 4 Line Phone Statue Indicator designed by David A. Johnson, P.E.
