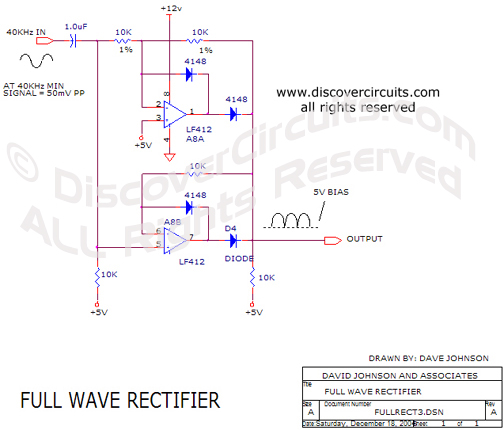

Full Wave Rectifier


This is a classic circuit that can accurately convert an AC signal to DC.  At 40KHz the input signal can be as low as 0.05 volts peak to peak.


Click on Drawing Below to view PDF version of Schematic
