MICROPOWER PULSE GENERATOR

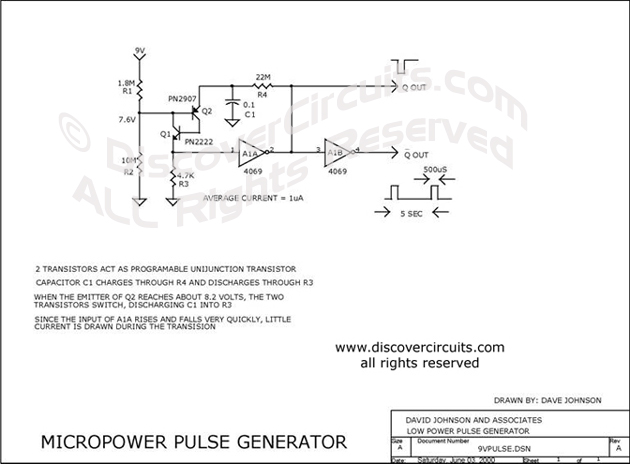

It is hard to design a pulse generator that produces clean logic pulses while drawing very low current. This circuit is designed to produce short 2mS pulses at a rate of one per second while drawing only 1 microamp from a 9 volt battery.

Click on Drawing Below to view PDF version of Schematic
