LINE POWERED XENON FLASH TRANSMITTER


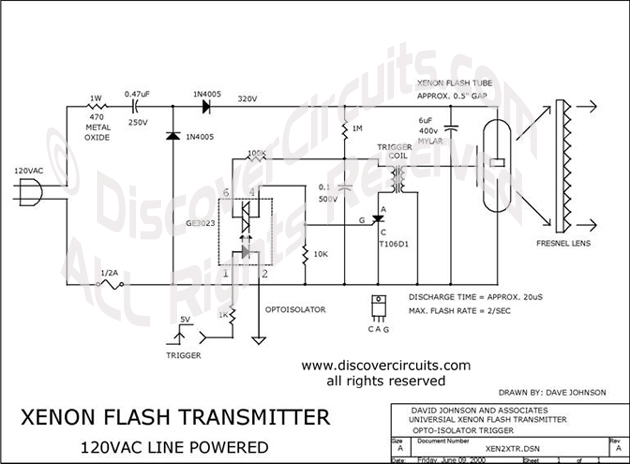

This line powered xenon flash circuit drives a small camera type flash tube.  It has an optical isolator to allow the flash to be safely triggered from some remote device.  A flash rate of 2Hz is possible with the circuit.


Click on Drawing Below to view PDF version of Schematic

Circuit Xenon Flash Transmitter designed by Dave Johnson, P.E. (June 9, 2000)
