More  Fiber Optic Circuits
Light Detectors or Optical Sensors      Amplifiers: Transimpedance

Light Receiver works from 1KHz to over 70MHz


This circuit uses one tiny C-MOS inverter IC to form a modulated light receiver with a very fast response. It is designed around a PIN photo diode that is packaged for use with plastic optical fibers. It can be used as an optical fiber receiver. By using the open end of the optical fiber it can "sniff" out any modulated light signals.

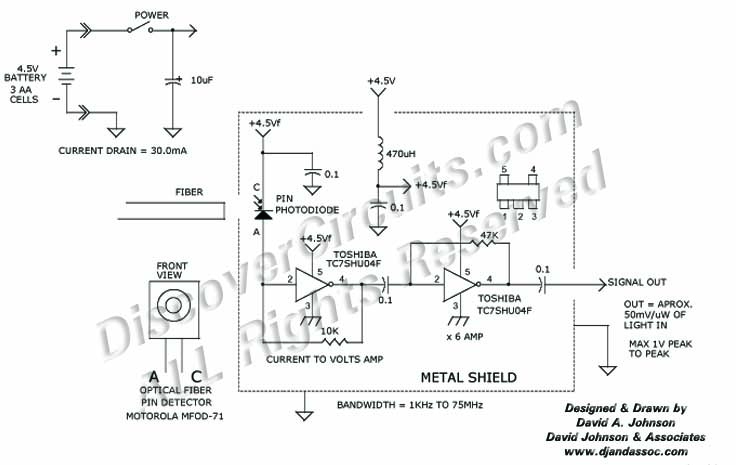

Click on Drawing Below to view PDF version of Schematic

Circuit 75MHz Optical Fiber Light Probe designed by David A. Johnson, P.E. (June 11, 2000)
