Alarm Circuits
WATER SEEPAGE ALARM

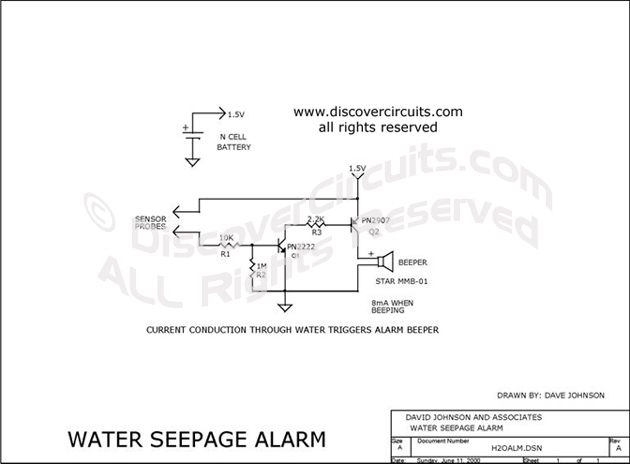

This simple circuit sounds a beeper when its electrodes detect water. It is powered by a single 1.5v N cell. A small 1.5v button battery will also work.

Click on Drawing Below to view PDF version of Schematic

Circuit Water Seepage Alarm designed by David A. Johnson, P.E. (June 11, 2000)
