Non-isolated Off-line AC to DC Power Supply


This compact efficient circuit can provide up to 100ma of a regulated 5 volts from an AC power source ranging from 20vac to 120vac.



Click on Drawing Below to view PDF version of Schematic

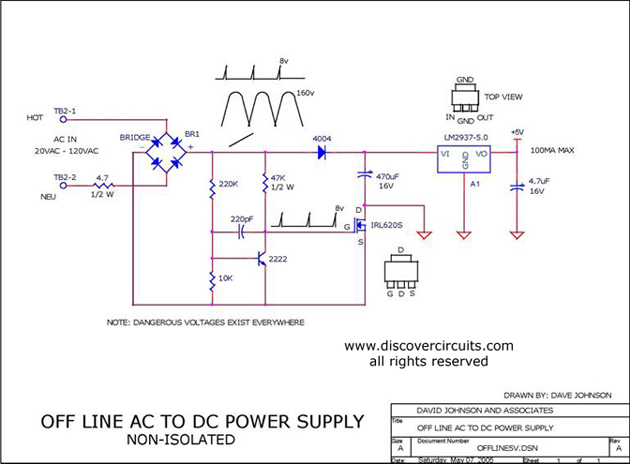

Circuit Off Line AC to DC Power Supply (non-isolated) designed  by Dave Johnson, P.E.  (May 7, 2005)
