High Voltage Ceramic Capacitors for Line Powered LEDs
By: Dave Johnson

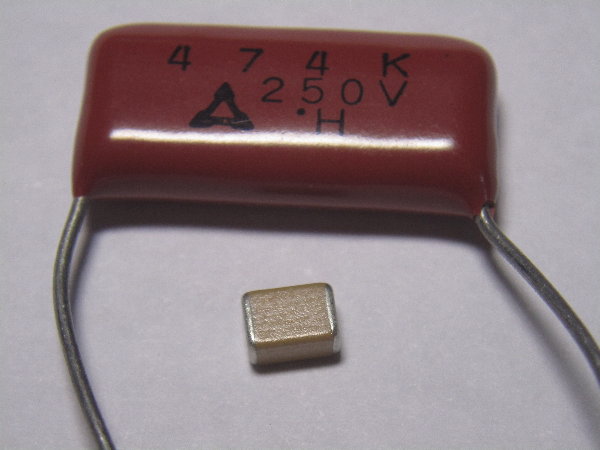

Many AC line powered DC supplies for LEDs wired in long series strings use a series connected capacitor to limit the current drawn from the power line.  Typically, these capacitors are Mylar or polyester film devices.  However, I think that much smaller ceramic type capacitors might also work.  Below is a photo showing a pair of capacitors each with the same 0.47uF 250v rating.  Clearly the ceramic device is much smaller.

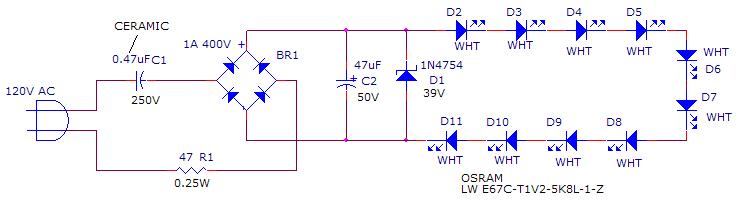

A typical LED series string design is shown below.  The smaller capacitor should make for a tighter package.  Iím going to build up some of these and try them out.  Iím especially interested in making some compact but bright night lights.

Please send comments to me
