Ultra Low Current Circuit Examples
By: Dave Johnson

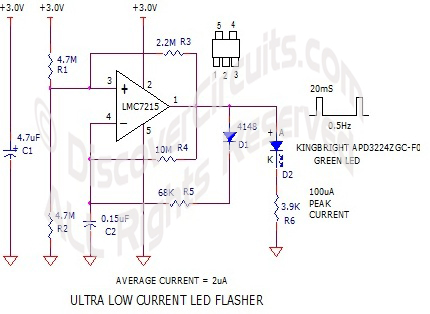

There are some wonderful new integrated circuits coming out. Some are designed for very low power applications.  I encourage you to play around with some of these new devices.  One application example is shown below.  It is a LED flasher circuit which draws about 2ua of total current from a 3v supply.

It uses a tiny ultra low power voltage comparator IC from National Semiconductor.  The LMC7215 itself draws less than one microamp from a 3v supply.  The device is wired into a pulse generator circuit, which flashes a super efficient green LED from KingBright.  The pulse rate is about 0.5Hz.  The LED flash duration is 20ms and the peak LED current is about 100ua.  Although the LED current is low, the efficiency of the LED is high enough that the flash is still quite bright.  Using surface mounted components, the complete circuit would take up less space than a postage stamp. This circuit might be useful to wire into a flashlight, so the light can be found in the dark.  The 2ua current drain is so low that it would not tax any battery.  In the future, I will post some more examples of very low power circuits.  I will also show some techniques to keep the average current of some circuits in the microamp range.

Please send comments to me
